SICAN CO.,LTD.

Commercial / Residential Window Films

HOME > PRODUCTS > Commercial / Residential Window Films

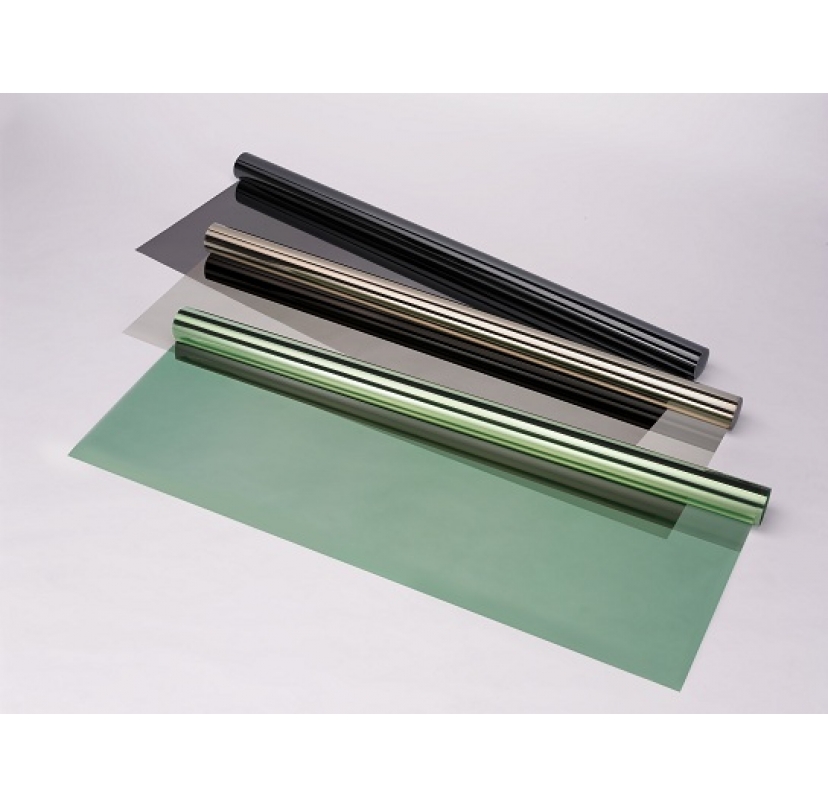

Ray Shield



FEATURES

   --- Increase comfort and protect privacy

   --- Blocking UV, IR and glare reduction

   --- Protect indoor furnishing

   --- Lower overall energy cost



HIGHLIGHTS

Designed to protect your indoor furnishing, significantly reduce the energy cost, insure your privacy, blocking UV and any harmful solar heat. Sican spent years of R&D to come to this ultimate solar protection film: the Ray Shield series for all commercial and residential buildings; improving your office and home life. Ray Shield film is a metalized sputter coating film; it applies metals such as silver, copper, gold, titanium and so on; onto the surface of the film. High in transmission for visible light, and low outer light reflection, Ray Shield series is one of the toughest solar protection films in the market.



As a manufacturer, we are able to make all kinds of films based upon your request:

---VLT

---Color

---Thickness

---IR Reject

---Customized Packing & Logo

Please feel free to use our ENQUIRY FORM to tell us what you like!

Product code CR Color VLT IR Reject UV cut Interior Reflection Exterior Reflection Total Solar Energy Rejection
FA-5108 Metalized Reflective 10% 83% 99% 47% 10% 68%
FA-5109 Metalized Reflective 10% 83% 99% 47% 10% 68%
FA-5170 Metalized Reflective 11% 83% 99% 47% 10% 86%
FA-5171 Metalized Reflective 17% 80% 99% 47% 10% 84%
FA-5172 Metalized Reflective 13% 83% 99% 47% 10% 86%
FA-5173 Metalized Reflective 13% 83% 99% 47% 10% 84%
FA-5175 Metalized Reflective 22% 83% 99% 47% 10% 83%
FA-5205 Metalized Reflective 5% 94% 99% 66.6% 66.2% 94%
FA-5215 Metalized Reflective 15% 82% 99% 66.6% 66.2% 95%
FA-5230 Metalized Reflective 35% 69% 99% 66.6% 66.2% 55%
