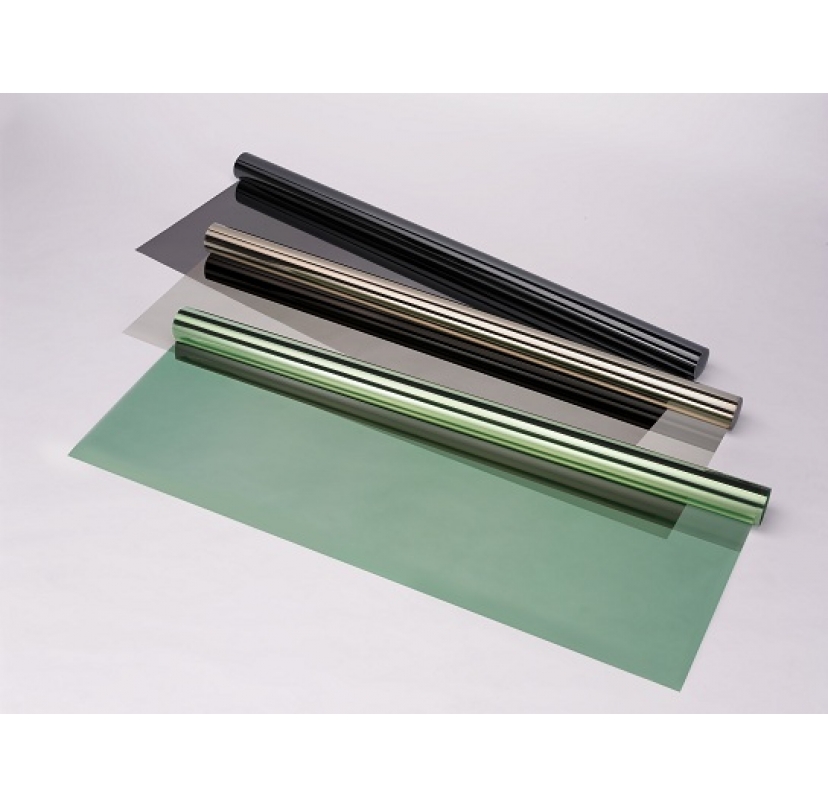

Ray Shield - Reflective Colored Building Window Films

Ray Shield - Reflective Colored Building Window Films

Download Specifications



FEATURES

   --- Increase comfort and protect privacy

   --- Blocking UV, IR and glare reduction

   --- Protect indoor furnishing

   --- Lower overall energy cost



HIGHLIGHTS

Designed to protect your indoor furnishing, significantly reduce the energy cost, insure your privacy, blocking UV and any harmful solar heat. Sican spent years of R&D to come to this ultimate solar protection film: the Ray Shield series for all commercial and residential buildings; improving your office and home life. Ray Shield film is a metalized sputter coating film; it applies metals such as silver, copper, gold, titanium and so on; onto the surface of the film. High in transmission for visible light, and low outer light reflection, Ray Shield series is one of the toughest solar protection films in the market.



As a manufacturer, we are able to make all kinds of films based upon your request:

---VLT

---Color

---Thickness

---IR Reject

---Customized Packing & Logo

Please feel free to use our ENQUIRY FORM to tell us what you like!

Product code CR VLT IR Reject UV cut Color Interior Reflection Exterior Reflection Total Solar Energy Rejection
XGRH-5108
10%±1.5% 83% 99% Metalized Reflective 47% 10% 68%
XGRH-5109
10%±1.5% 83% 99% Metalized Reflective 47% 10% 68%
XGRH-5170
11%±1.5% 83% 99% Metalized Reflective 47% 10% 86%
XGRH-5171
17%±1.5% 80% 99% Metalized Reflective 47% 10% 84%
XGRH-5172
13%±1.5% 83% 99% Metalized Reflective 47% 10% 86%
XGRH-5173
13%±1.5% 83% 99% Metalized Reflective 47% 10% 84%
XGRH-5175
22%±2% 83% 99% Metalized Reflective 47% 10% 83%
XGRH-5205
5%±1% 94% 99% Metalized Reflective 66.6% 66.2% 84%
XGRH-5215
15%±1.5% 82% 99% Metalized Reflective 66.6% 66.2% 95%
XGRH-5230
35%±3% 69% 99% Metalized Reflective 66.6% 66.2% 55%
